JPL-Connect-2

Stockists

SKU: 575-273-002 | SSP: $94.95

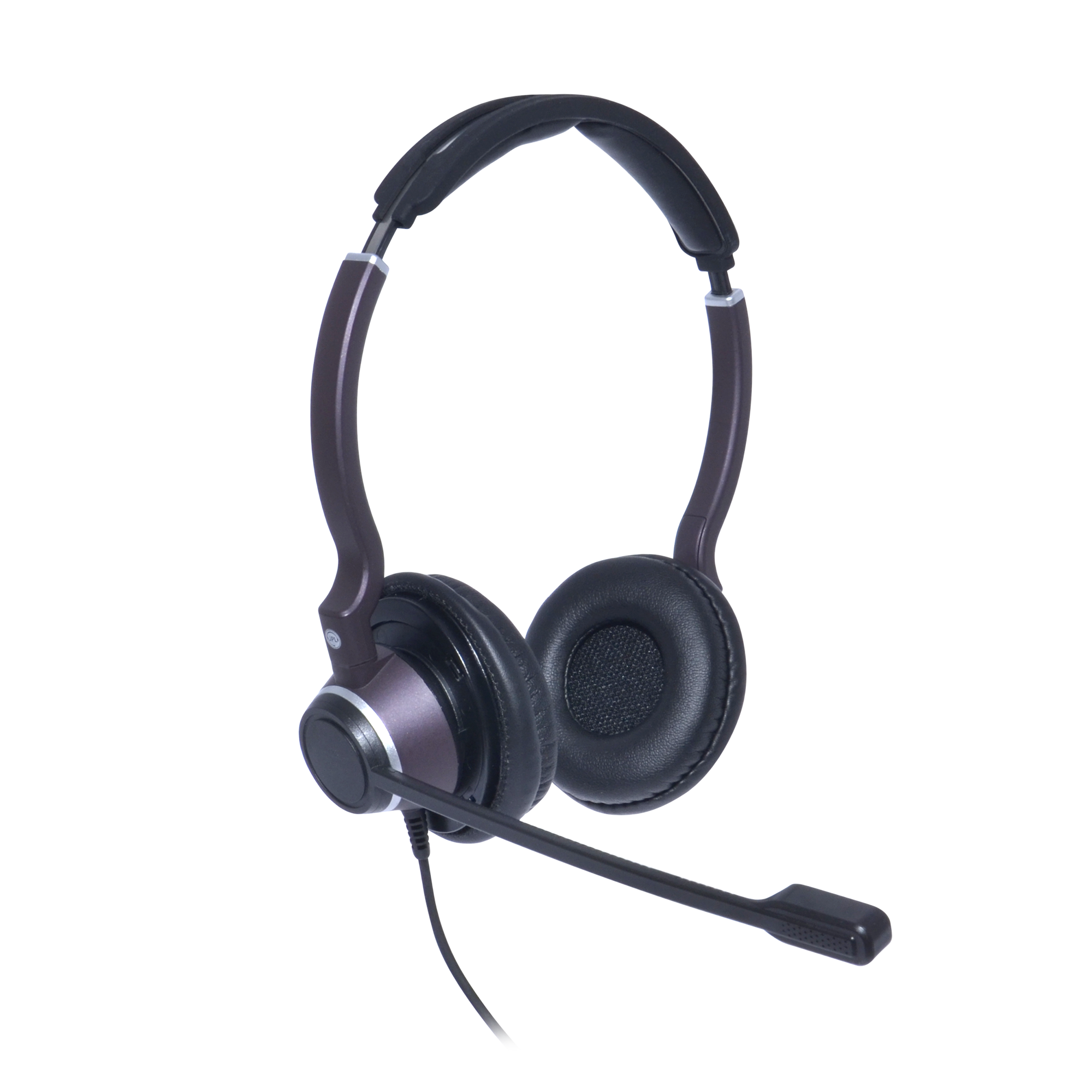

Ultra light affordable office and contact centre headset

Featuring large 70mm ear cushions for a more concentrated listening experience.

Strong, robust construction

Suitable for regular phone users.

Headset Partners

We test our headsets and obtain certification with leading Unified Communications providers

Technical Data

Features
Dual speakers for better call concentration
Left / right side microphone placement
Weighted filter for clearer noise cancelling
Surround Shield™ noise cancelling microphone with static shock protection
Wideband enabled speakers with Sound Shield™ acoustic shock protection
'Put and stay' ratchet microphone boom arm
Overhead, sure-fit fully adjustable headband
Fitted with large 70mm leatherette ear cushions for maximum all day comfort
What’s included	Headset Tough Case, spare 50mm leatherette ear cushions, headset hanging hook, Clothing clip and Quick Start Guide
Weight	102g
Connection	PLX Quick Disconnect**
Compatibility	For full range of bottom leads available*
Certifications	FCC, CE, RoHS, REACH
Warranty	3 Years Warranty - includes 2 years standard no quibble repair or replace warranty PLUS a 3rd year cover on all non-moving parts
MOQ	Master Shipping Carton: 32
EAN	5060126956273
SKU	575-273-002

Microphone
Impedance	2.2kΩ
Sensitivity	-32dB ± 3dB at 1kHz
Directional	Bi-directional
Frequency range	50Hz~20kHz ± 6dB
Distortion	Less than 3%
Power supply	3V DC
S/N ratio	More than 58dB
Speaker
Impedance	150Ω ± 15% at 1kHz
Sensitivity	93 ± 3dB at 1kHz 60mV Input
Max input power	100mV
Frequency range	100Hz~6800Hz
Distortion	Less 3% at 1kHz 60mV

* optional to purchase seperately
** GN QD available on special request

Downloads

Quickstart Guide

User Guide

Data Sheet

Declaration of Conformity
